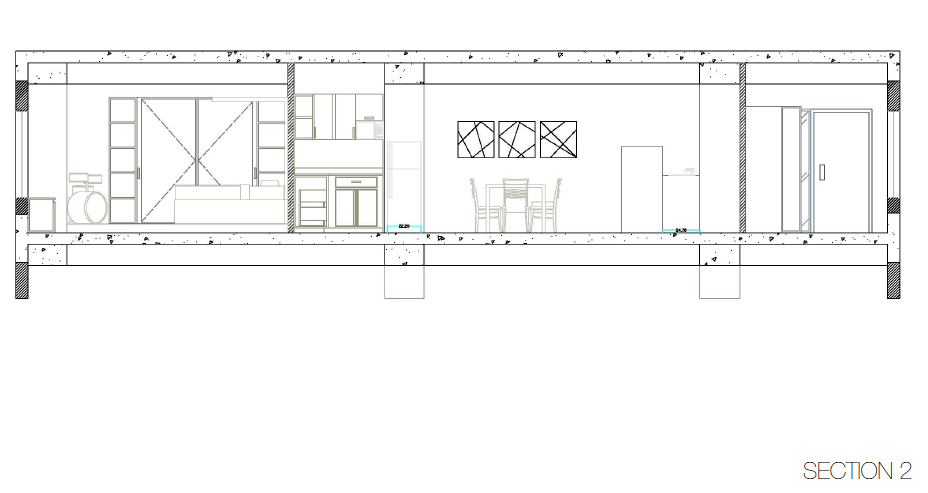

This is the final plan of the space that I designed for the family.  Other plans in the technical packet can be seen below:
Screen Shot 2016-01-25 at 1.54.48 AM.png
     Google SketchUp Renderings:
Screen Shot 2016-01-25 at 1.46.40 AM.png
     Process   These are a few of the steps I took before reaching my final design:      I developed a strong story behind the hypothetical family I was designing for, and considered their psychographic segmentation.

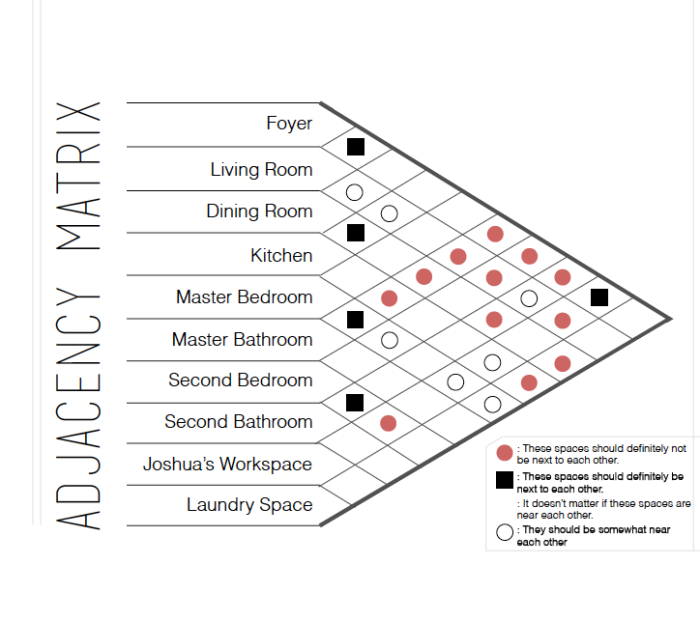

     This matrix helped me understand what spaces could be adjacent to each other, and which ones had to be separated. I was able to then create 'public zones' and 'private zones' in the space.
     I used concept boards to help guide the look and feel of each room in the apartment, similar to the one below.
